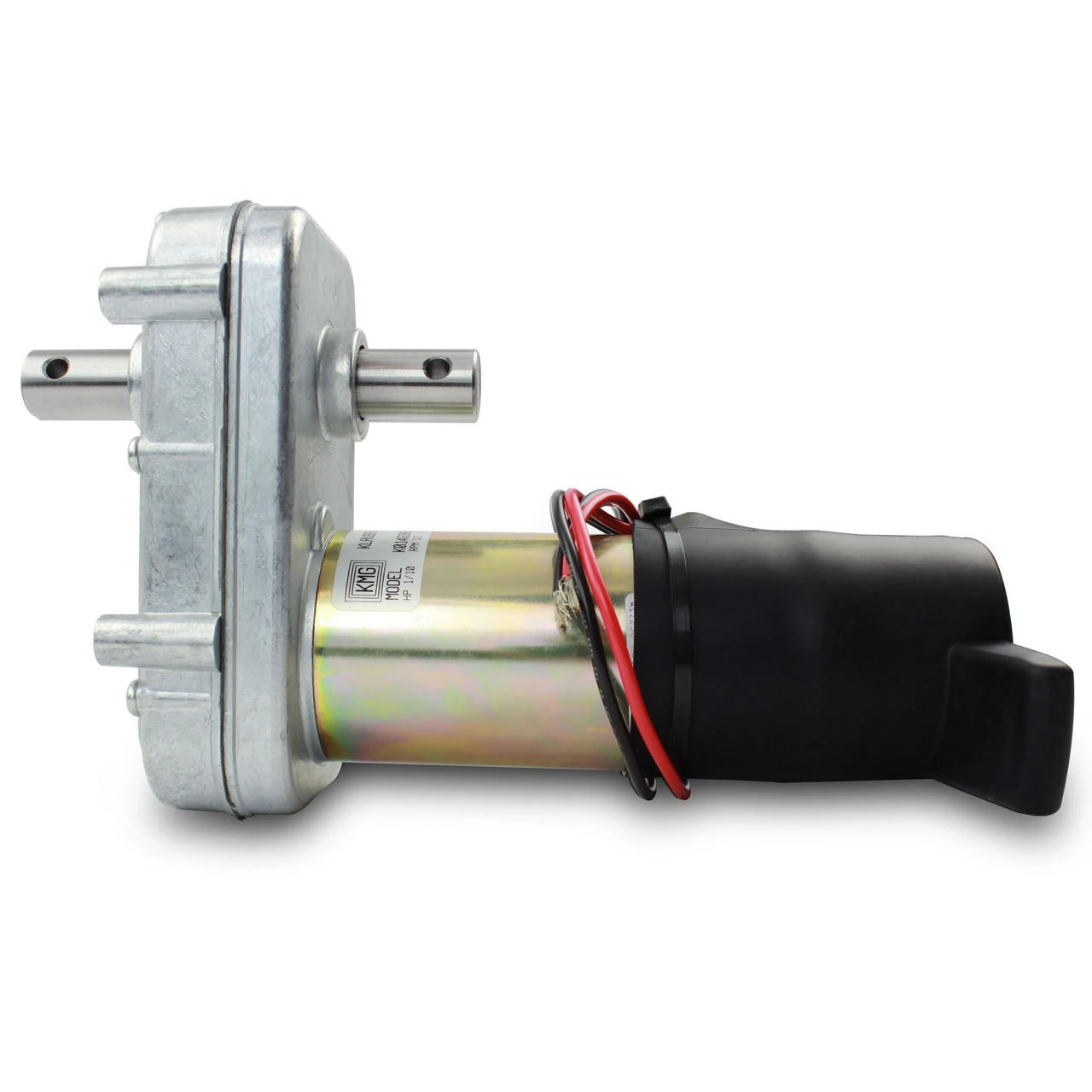

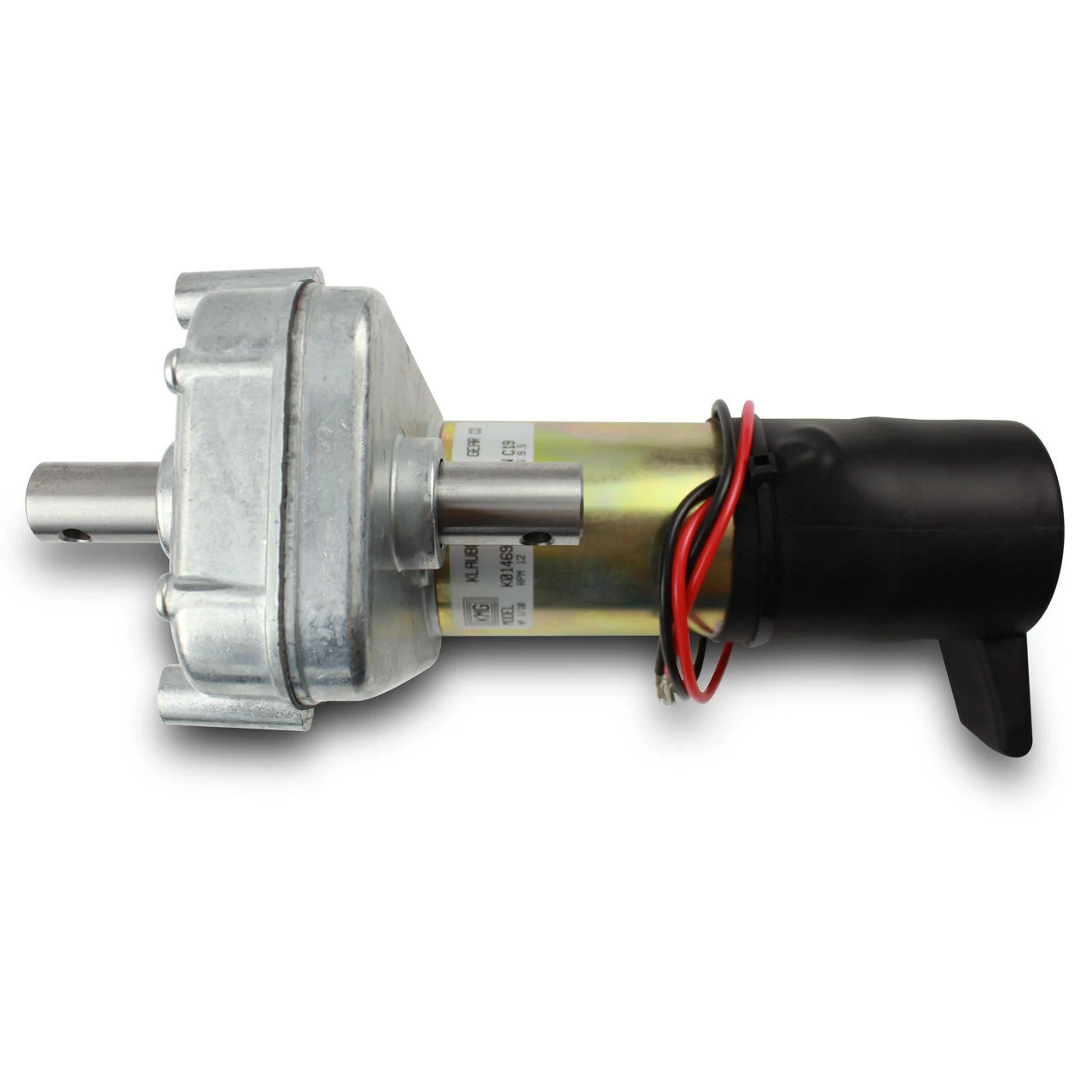

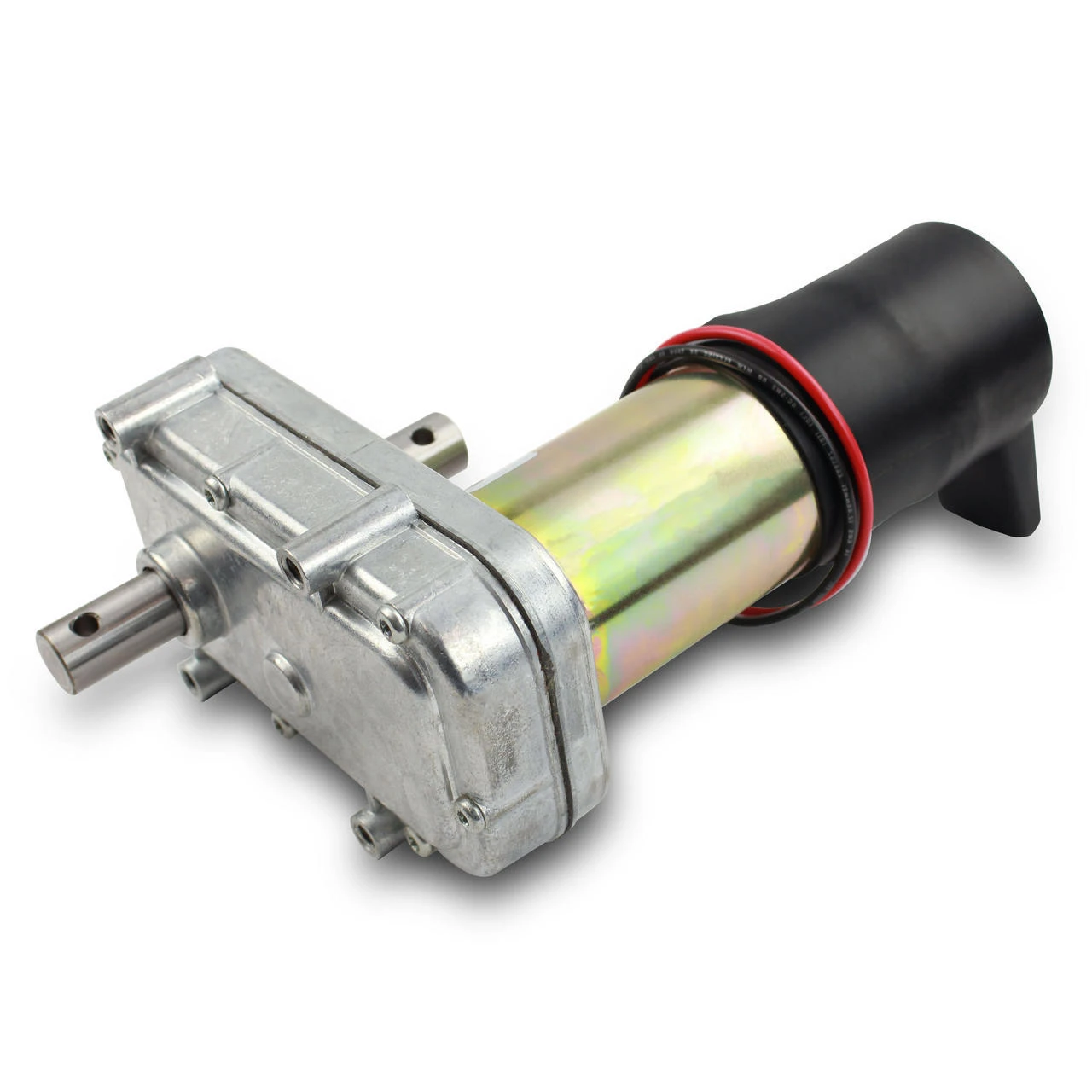

RV Slide Out Motor Power Gear 523900 Replacement K01469B300

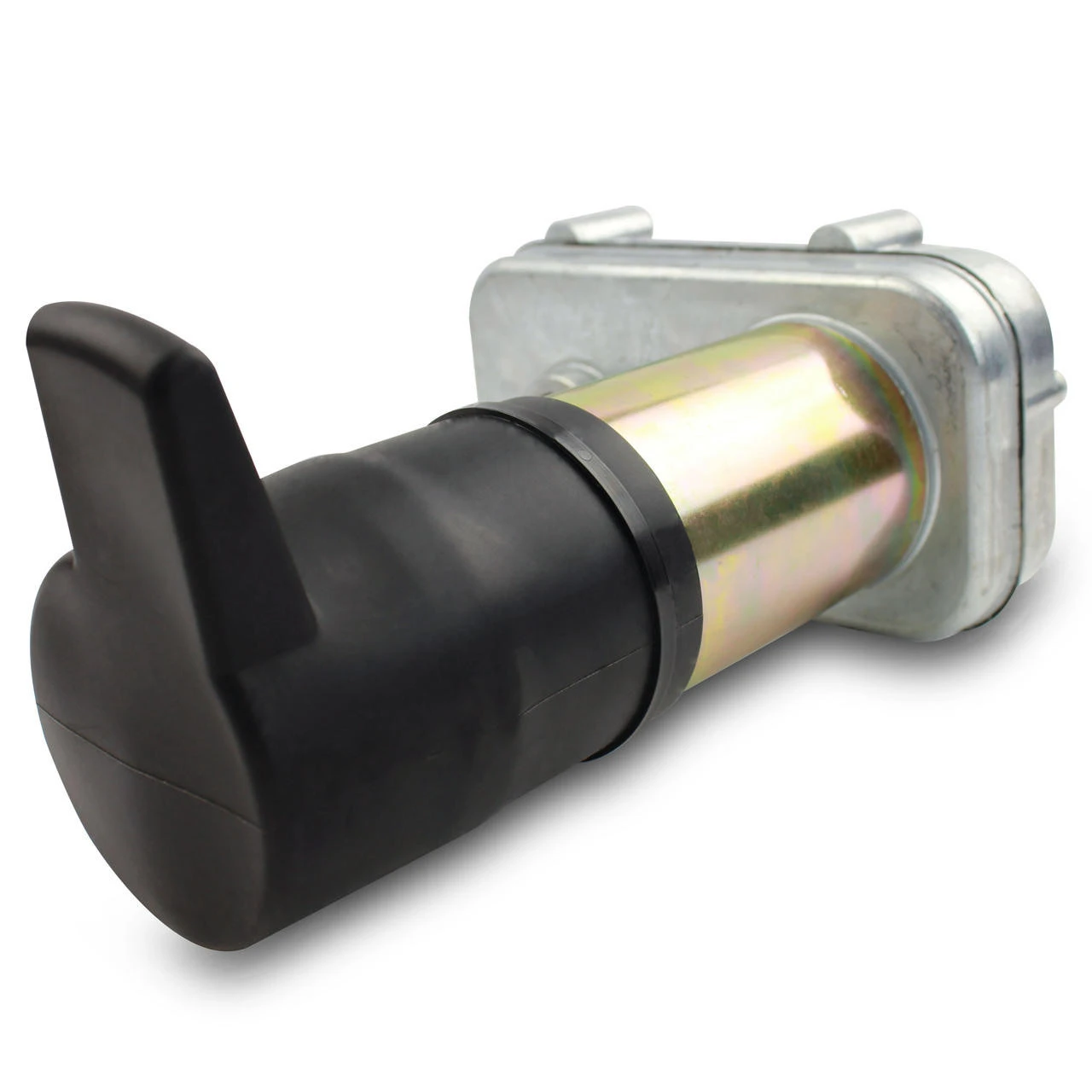

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor with manual release lever.

SPECIFICATIONS

• Speed 6 RPM @ 850 in-lbs, 25 Amps
• 10 RPM @ 400 in-lbs, 13 Amps
• 12 RPM (no load)
• Voltage 12 DC
• Torque 850 in-lbs
• Holding Torque 500 in-lbs.
• Rotation Reversible
• Duty Intermittent
• Enclosure TENV

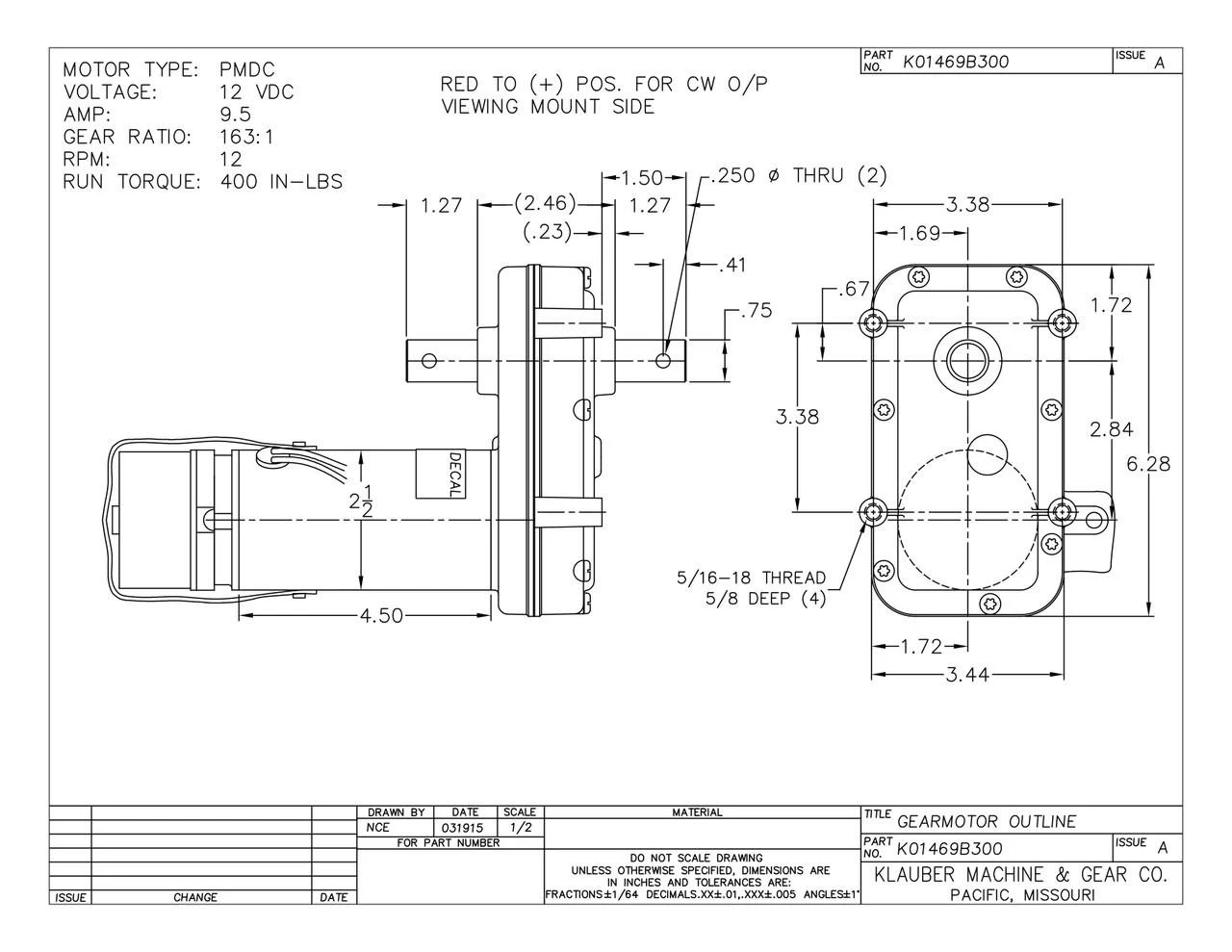

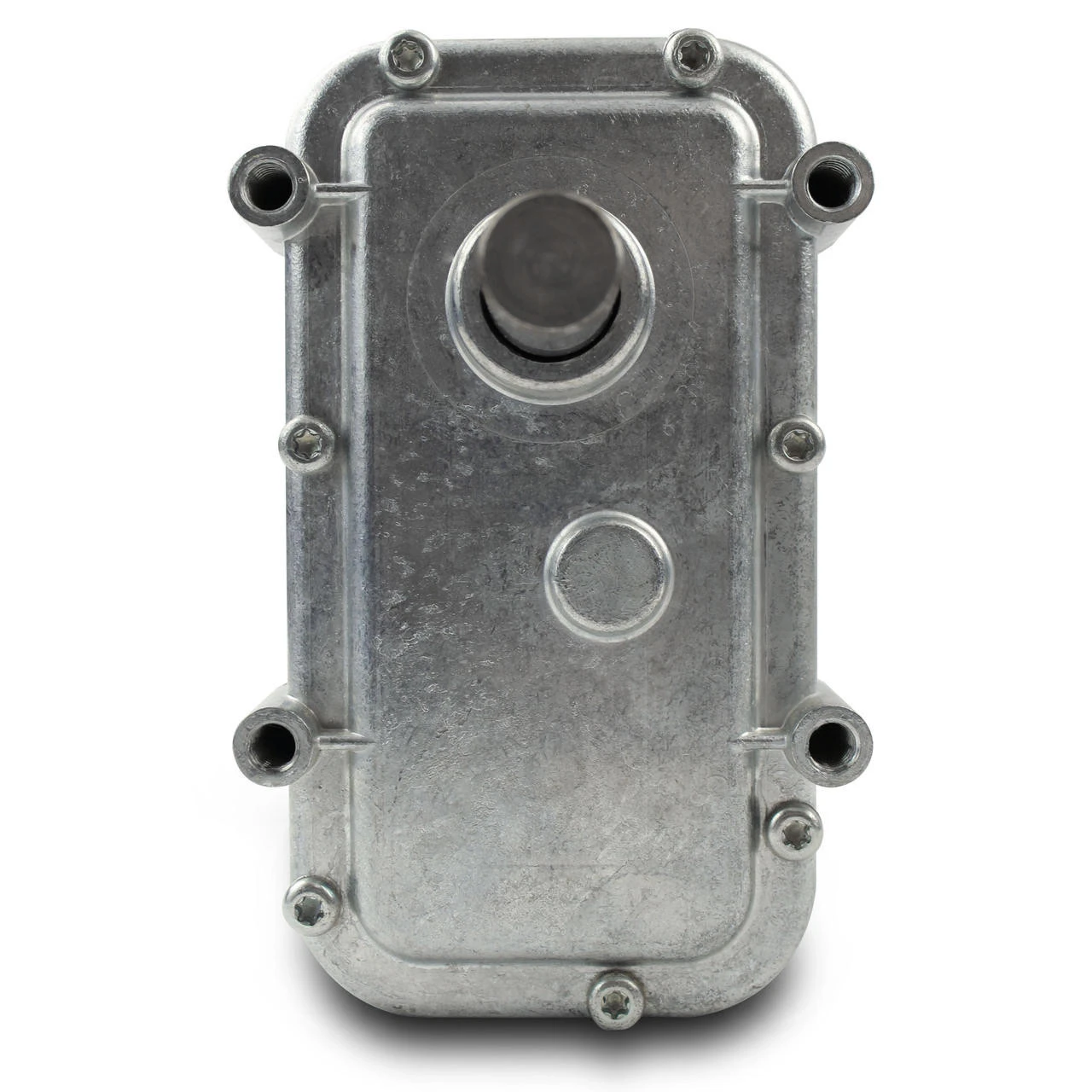

• Mount Four bolt face mount on 3.38″ x 3.38″centers
• Dual Shafts 3/4″ diam. x 1-1/4″ with 1/4″ crosshole (no keyway)
• Size 9-1/4″ x 3-7/8″ x 6-1/4″

CROSS REFERENCES:  K01469-B300, K01469B300 K01439E300, 138449 130-1235, 130-1204c, K01531A300, K01265E300, K01265F300, K01285F300, 1510000006, 130-1164, 130-1187, 13-1109, 130-1219, 520819, 522967, 523529, 521976, 13-1133, 13-1119, 523900, 523013, 523529, 524094, 524327, 524411, 523931, 524246, 520819, 522967, 523823 1010000010, 523983, 522176 (check specs) 386322 (verify bolt pattern) 521292, 521748, 523046, 523387, 368417, 522756, 524361, 523387, 524667, 523143, 386480, 368185, 523982,  523143S (has the smaller motor but same ratings), 523766, K01265D300 (Gear ratio lower), K01265B300, Lippert 383745 (may have to reuse, splice on, old connector from old unit)

Electric Motors may be returned if authorized by Leisure CoachWorks and must be unused/not installed. Accepted returns are subject to a 20% restocking fee
