RV Slide Out Motor K01469-D500 Replacement For K01265-F500,Klauber Motor Replacing K01265P500, 386327
Original price was: $333.00.$96.99Current price is: $96.99.
- Top Quality Products
- Nature-friendly materials, 100%.
- 7 days return and exchange
- Safe Payments, Secure Personal Information

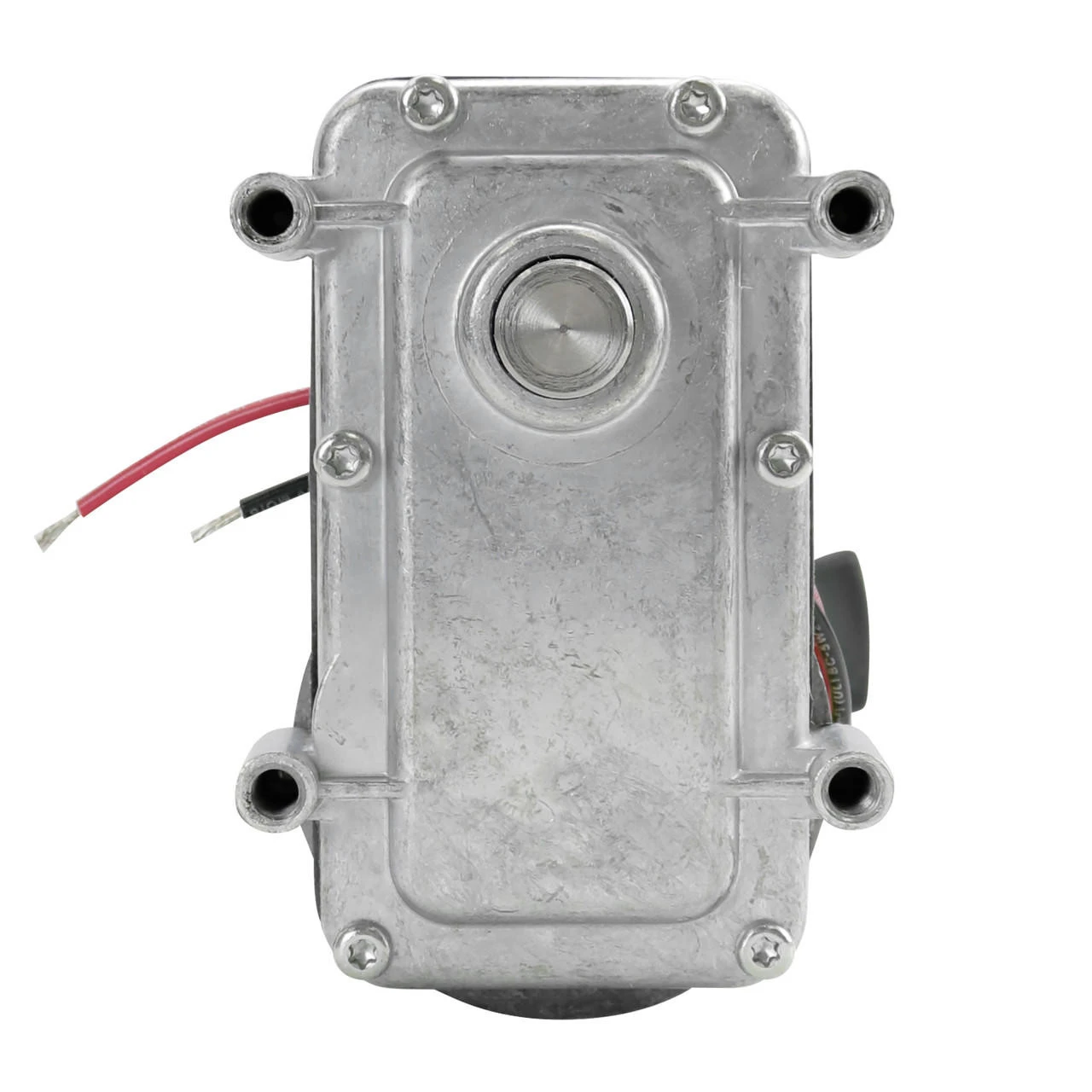

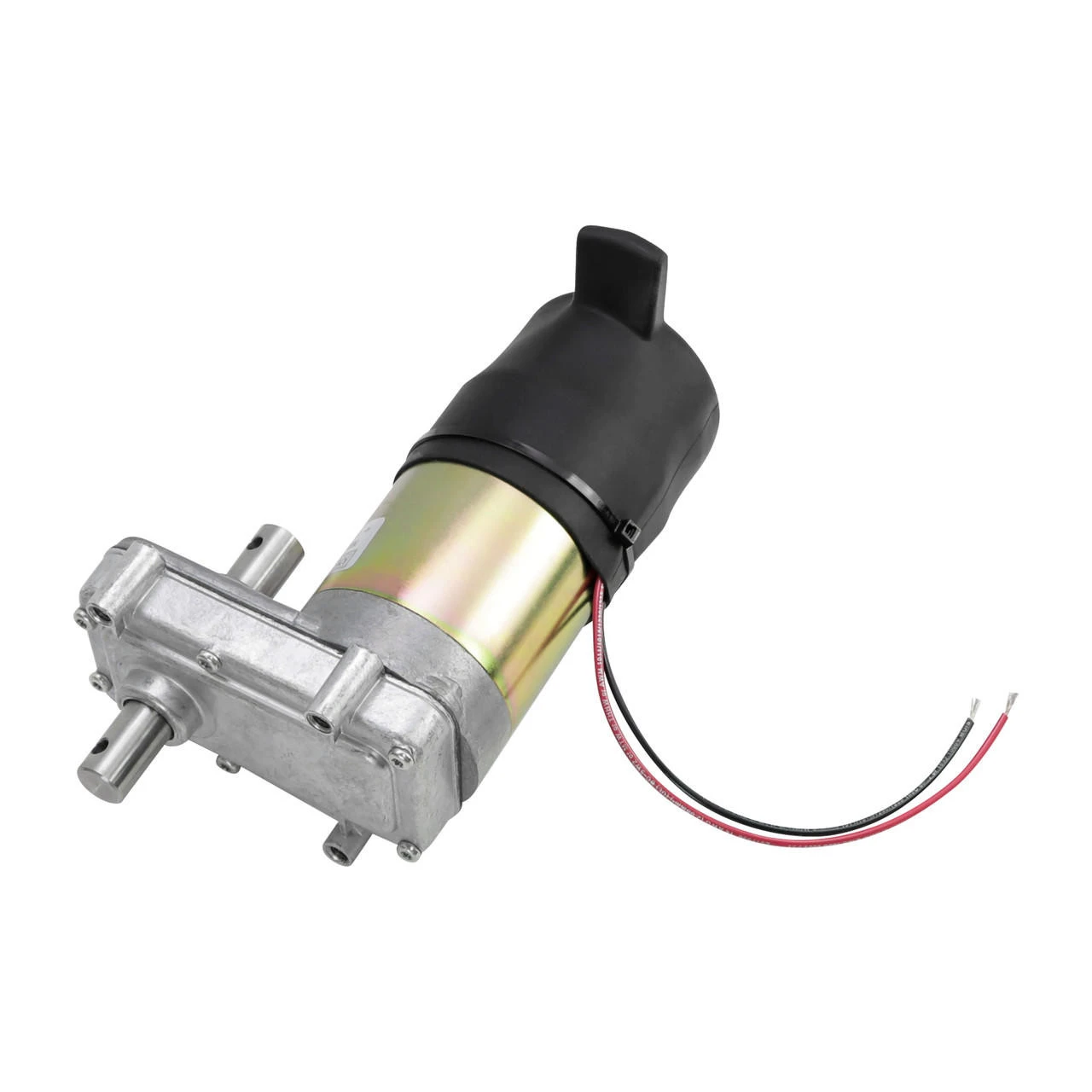

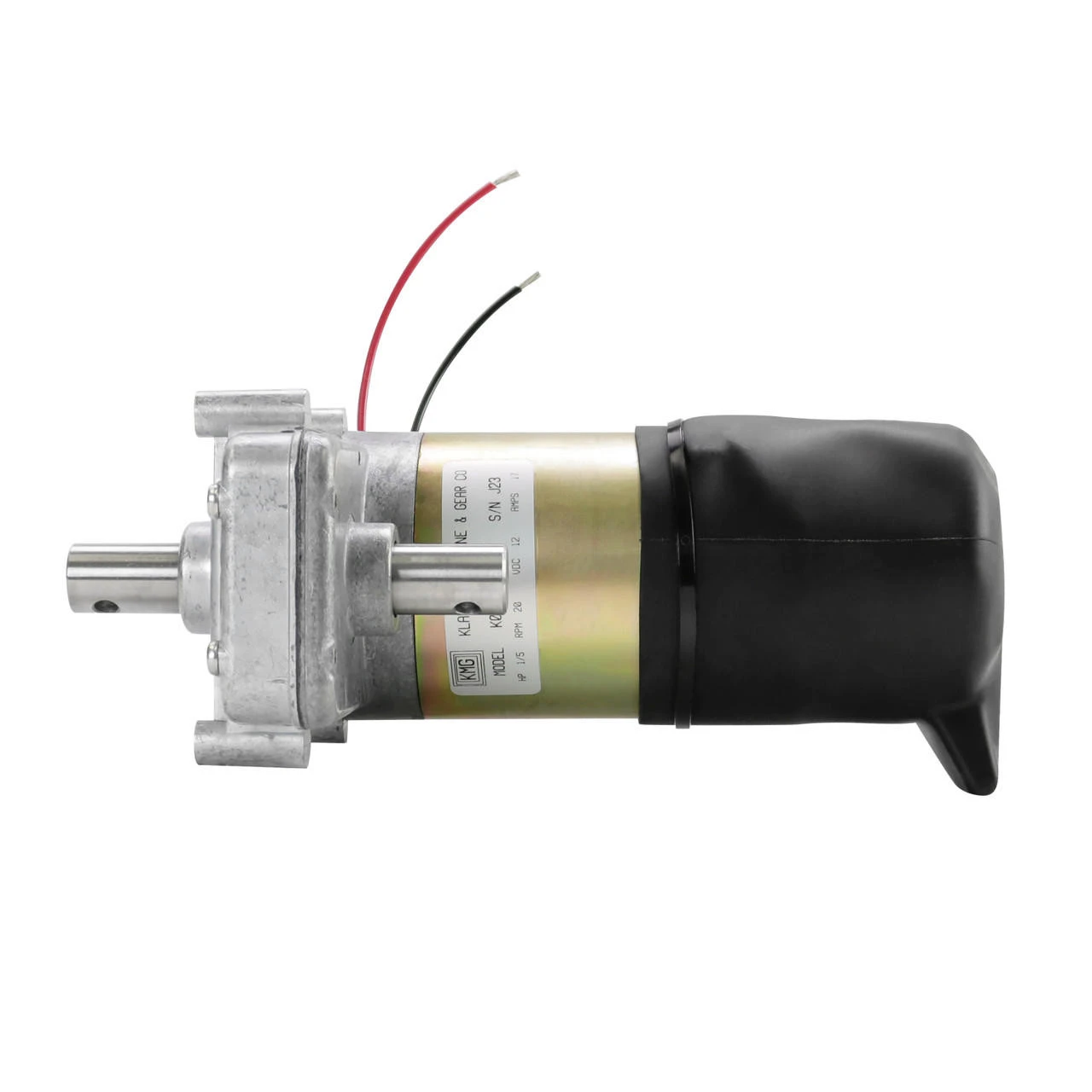

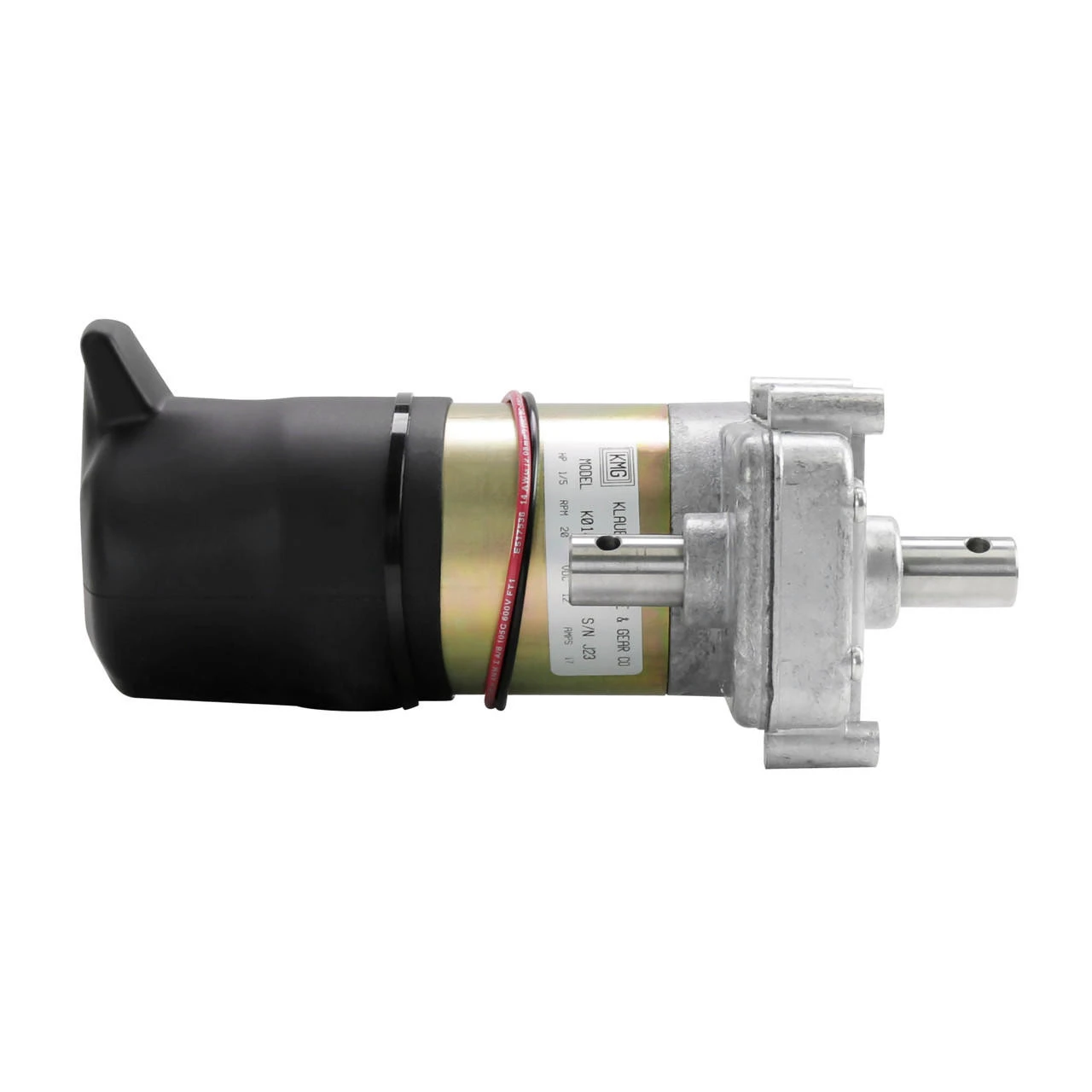

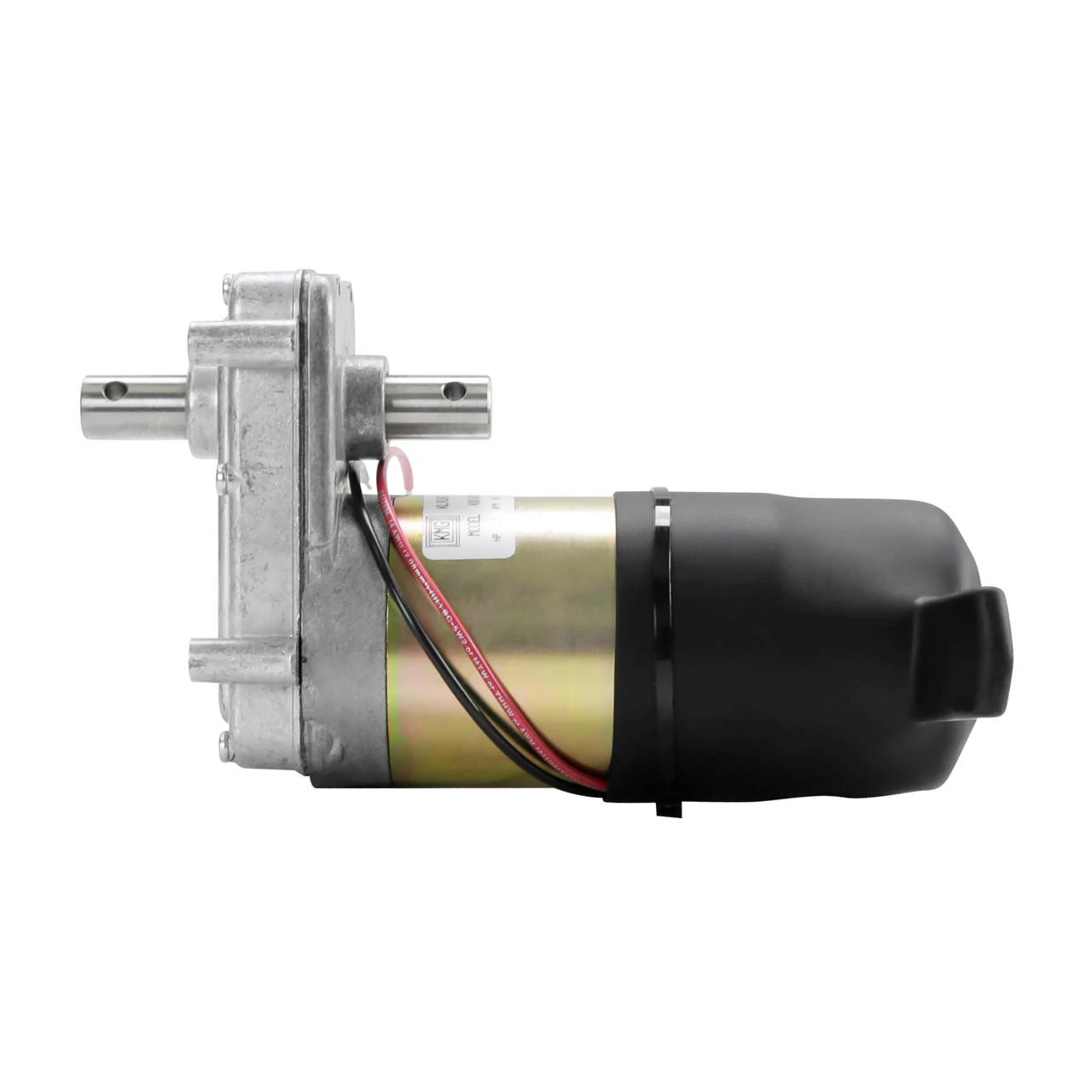

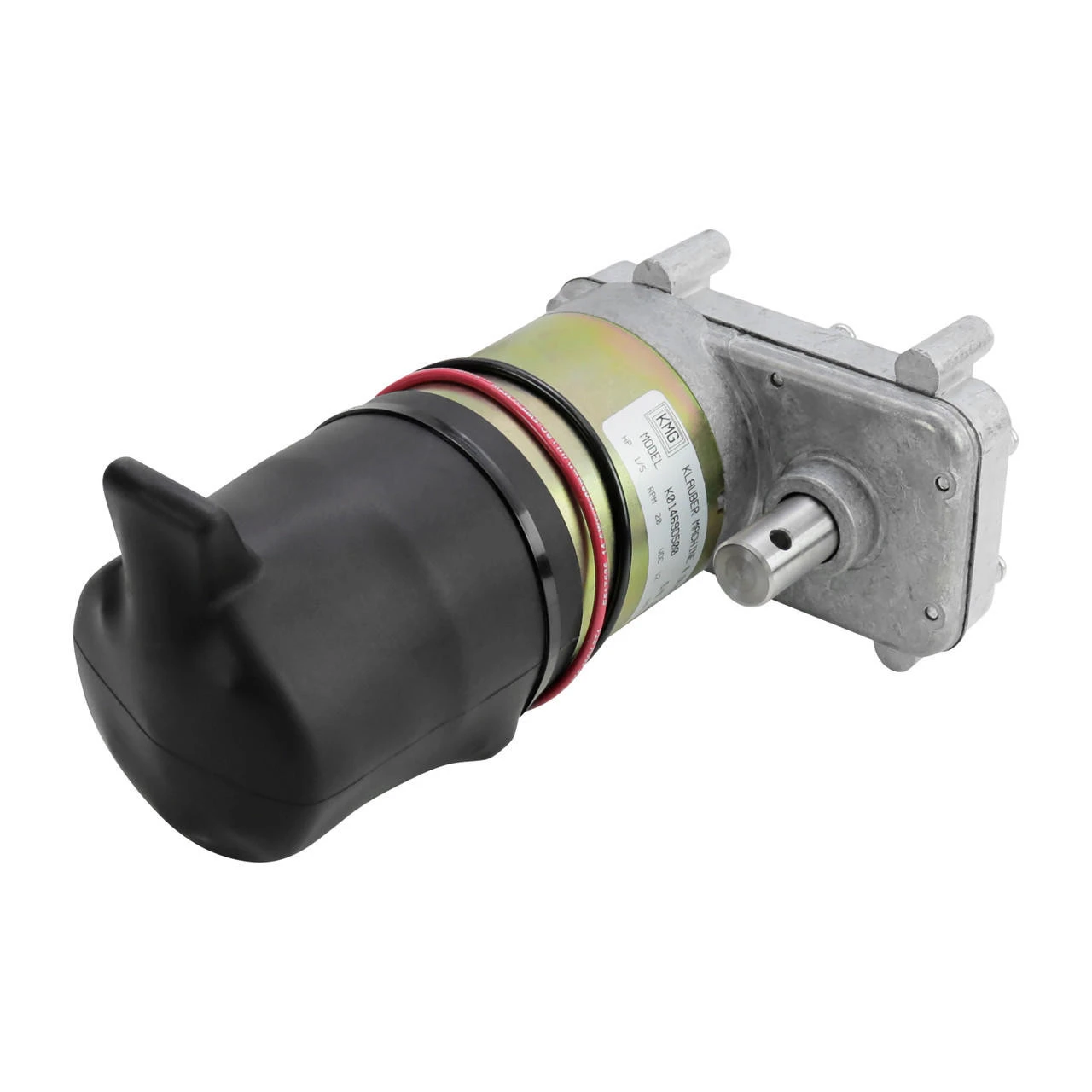

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor with manual release lever.
SPECIFICATIONS
- 25 RPM
- Voltage 12 DC
- Run Torque 350 in-lbs
- 89:1 Gear Ratio
- 16.5 Amp
- Rotation Reversible
- Duty Intermittent
- Enclosure TENV
- Mount Four bolt face mount on 3.38″ x 3.38″centers
- Dual Shafts 3/4″ diam. x 1-1/4″ with 1/4″ crosshole (no keyway)
CROSS REFERENCES: 386327, K01265-F500, K01265P500, K01265-P500, K01265P500EB, 10106406, 348582
Electric Motors may be returned if authorized by Leisure CoachWorks and must be unused/not installed. Accepted returns are subject to a 20% restocking fee
| SKU | X7X5J |
|---|---|
| Width | 6.50 (in) |
| Height | 10.00 (in) |
| Depth | 4.25 (in) |
Be the first to review “RV Slide Out Motor K01469-D500 Replacement For K01265-F500,Klauber Motor Replacing K01265P500, 386327”
