RV Slide Out Motor K01469-B500 Replacement For K01265C500,Klauber Motor Replacing K01265C500, 520430, K01265A500 -RV accessories klauber rv slide out motor k01469 b500 replacement for k01265c500 60939.1692085789

RV Slide Out Motor K01469-B500 Replacement For K01265C500,Klauber Motor Replacing K01265C500, 520430, K01265A500

Original price was: $346.00.Current price is: $96.99.

SKU: BGVPC 9939 Categories: RV Parts, Slide Out Motors / Gears

Top Quality Products
Nature-friendly materials, 100%.
7 days return and exchange
Safe Payments, Secure Personal Information

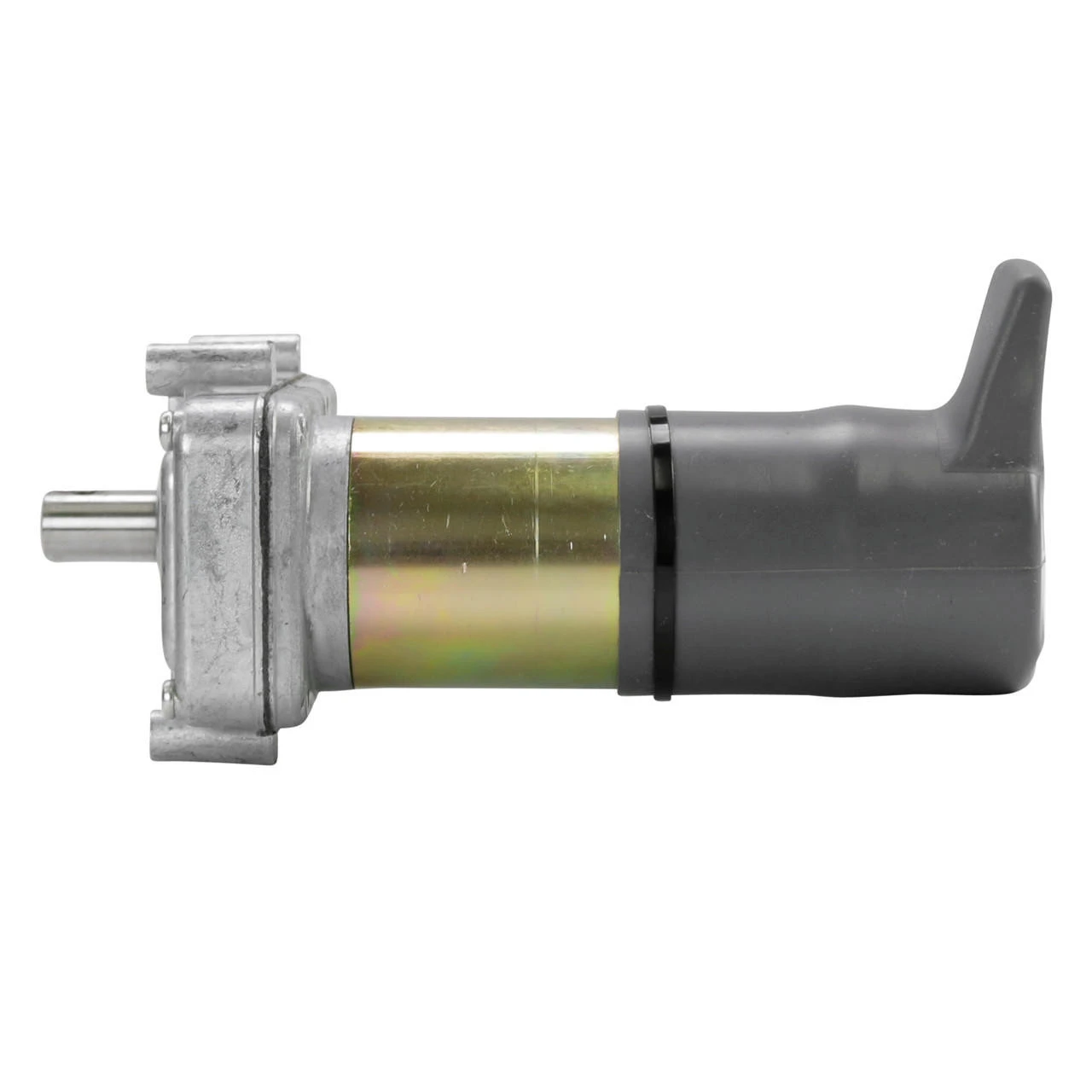

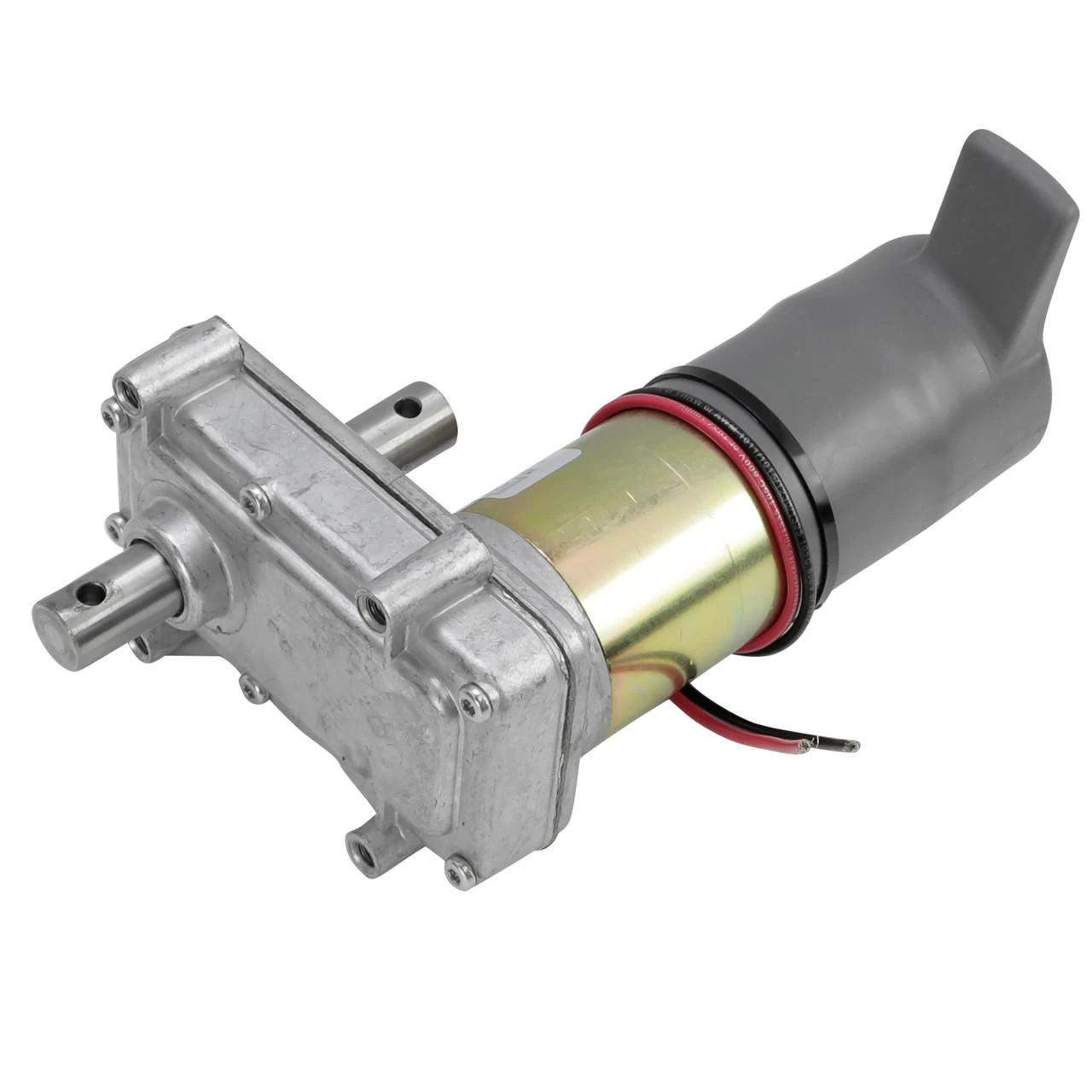

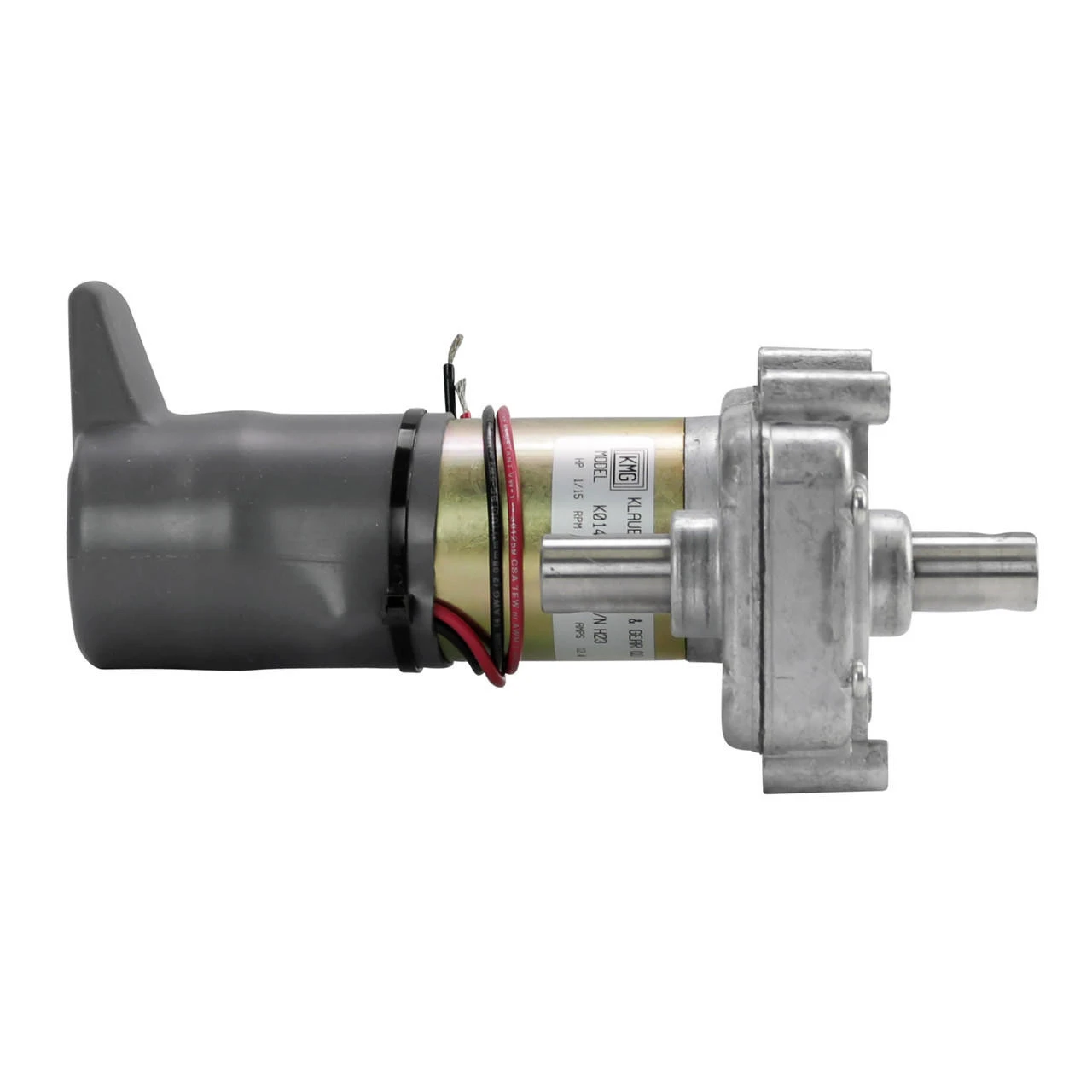

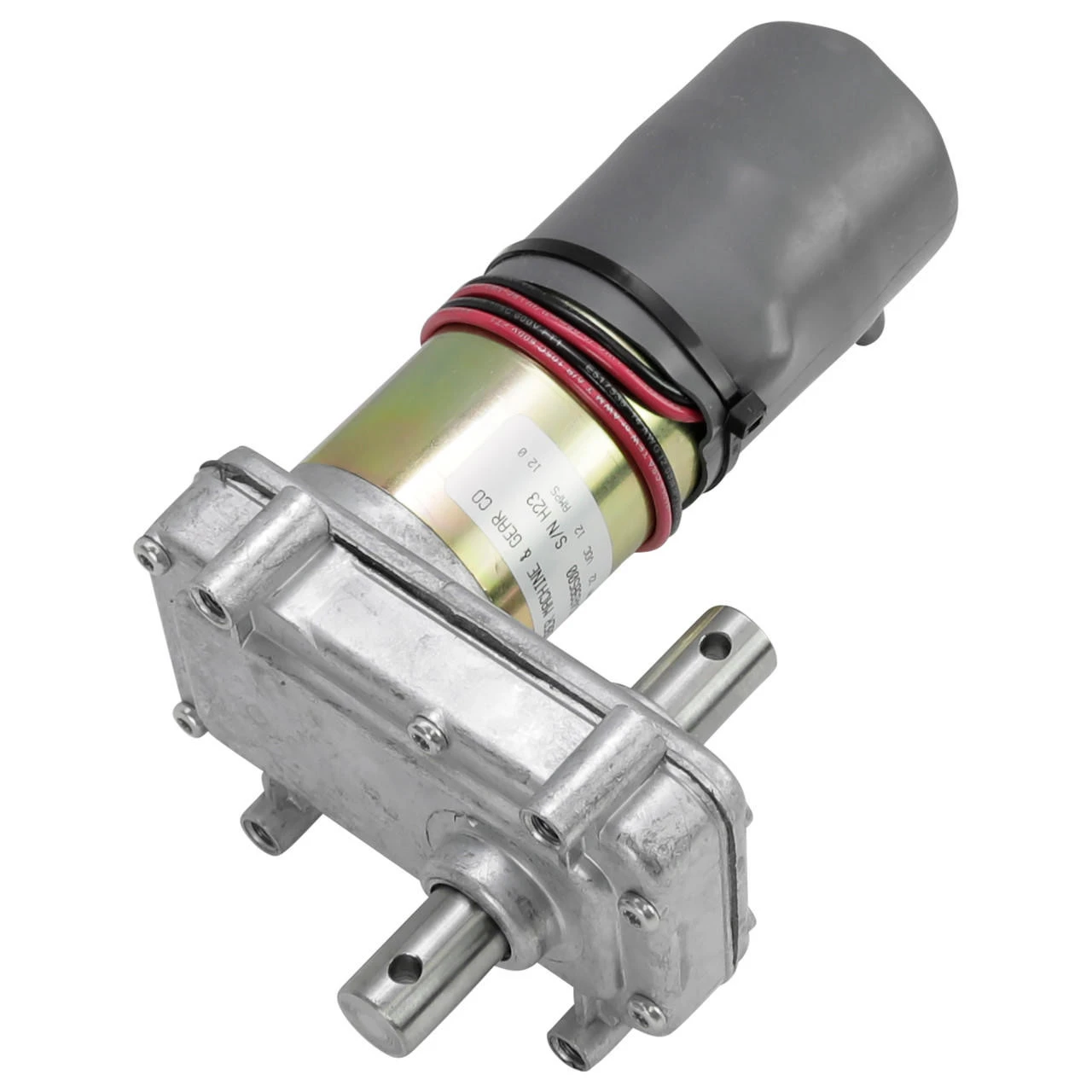

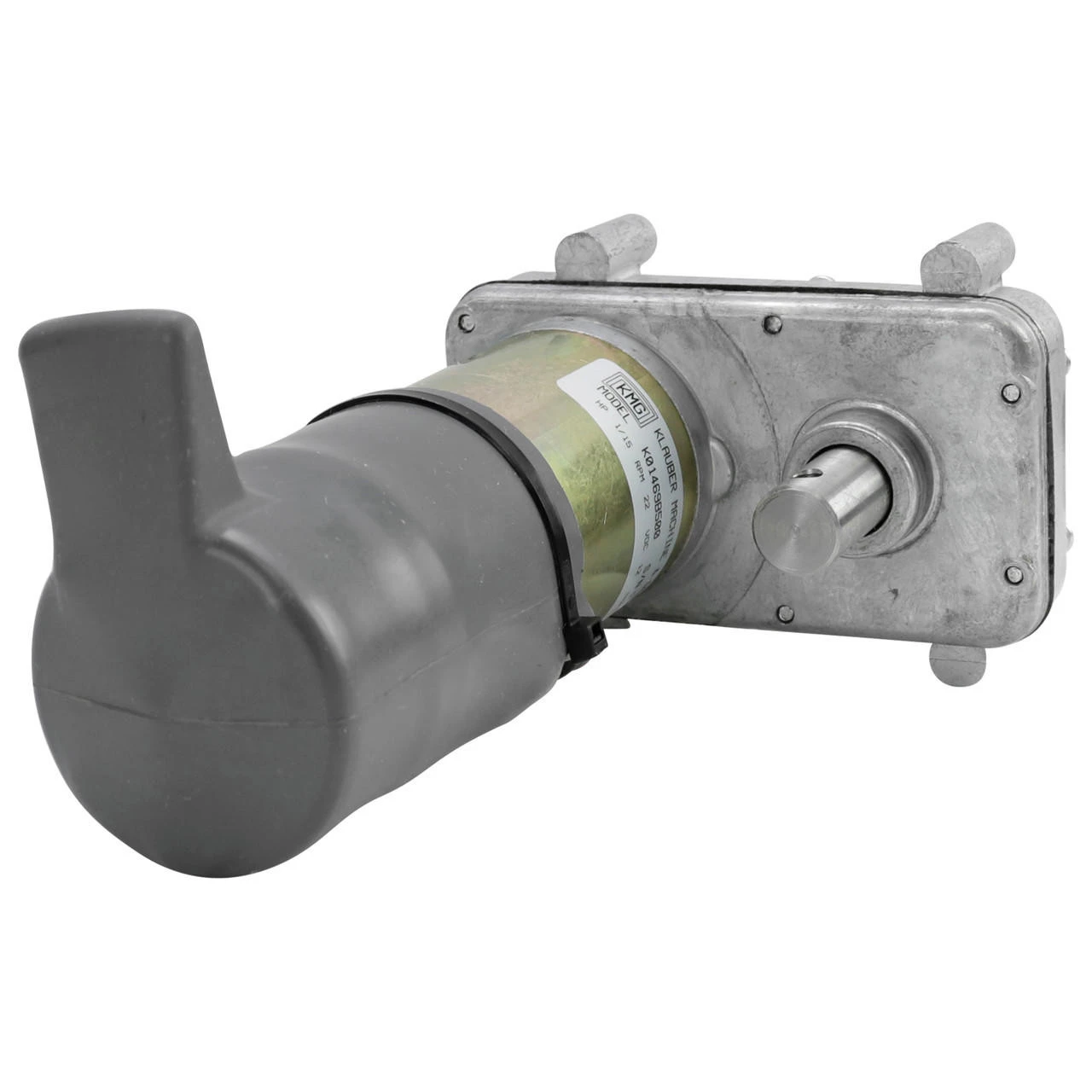

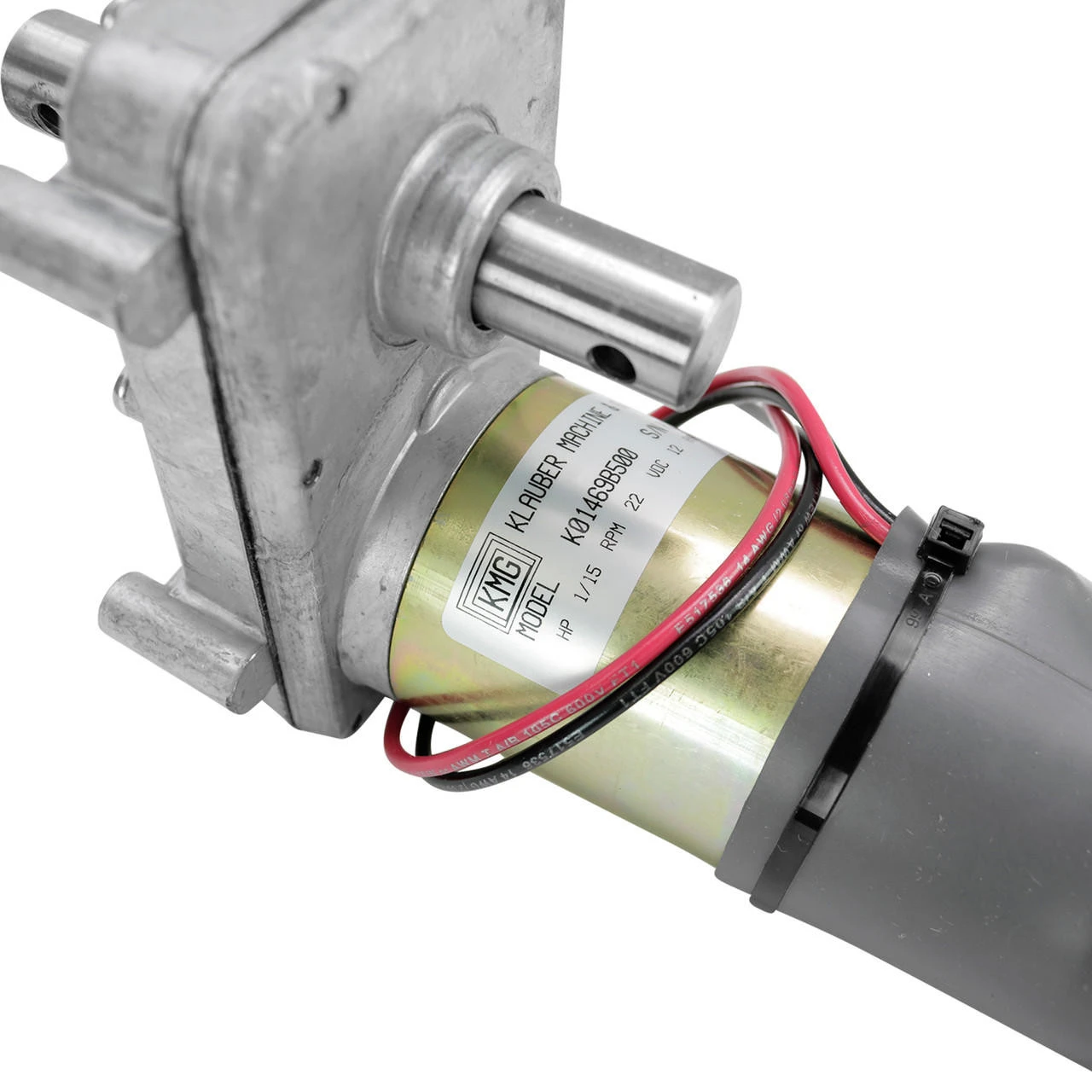

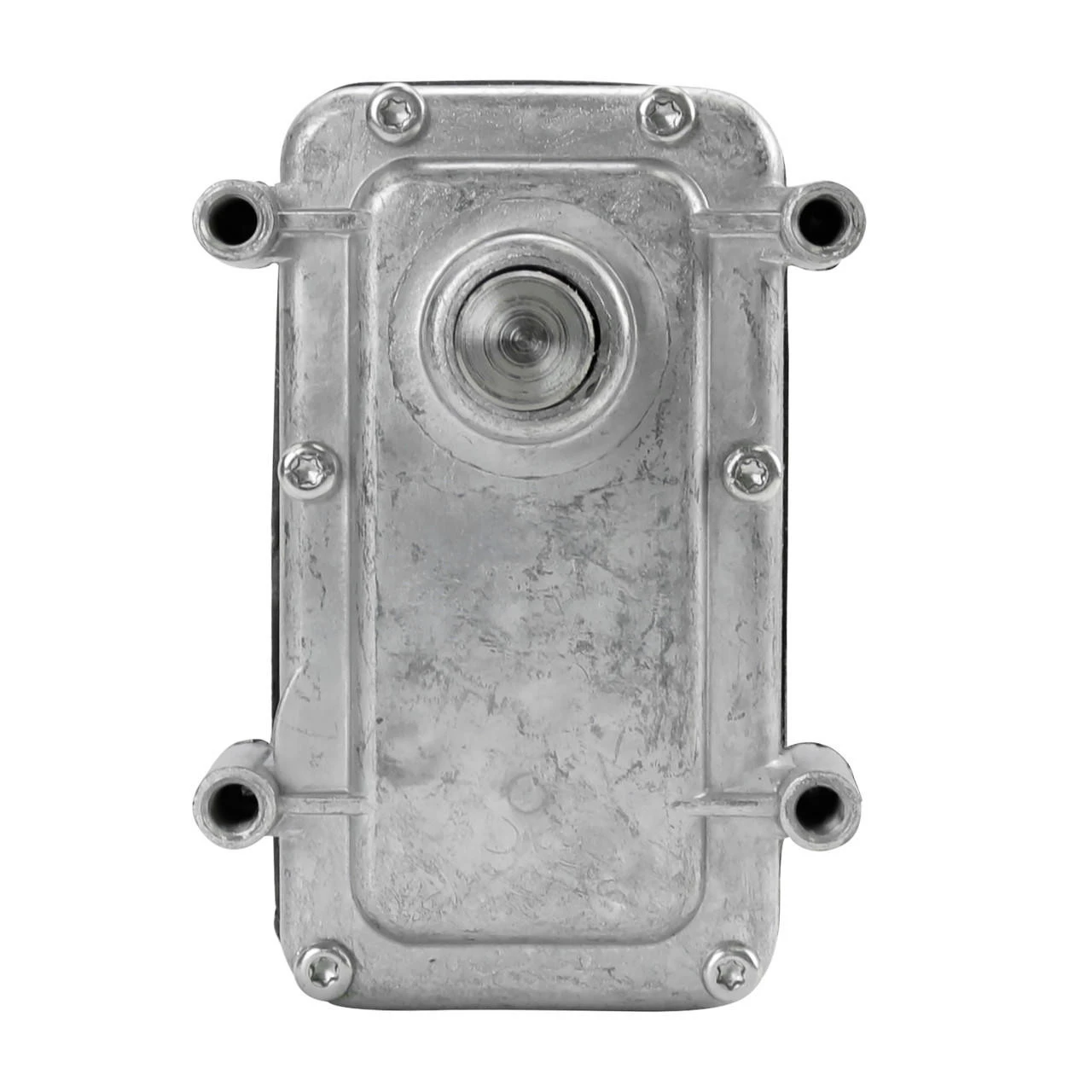

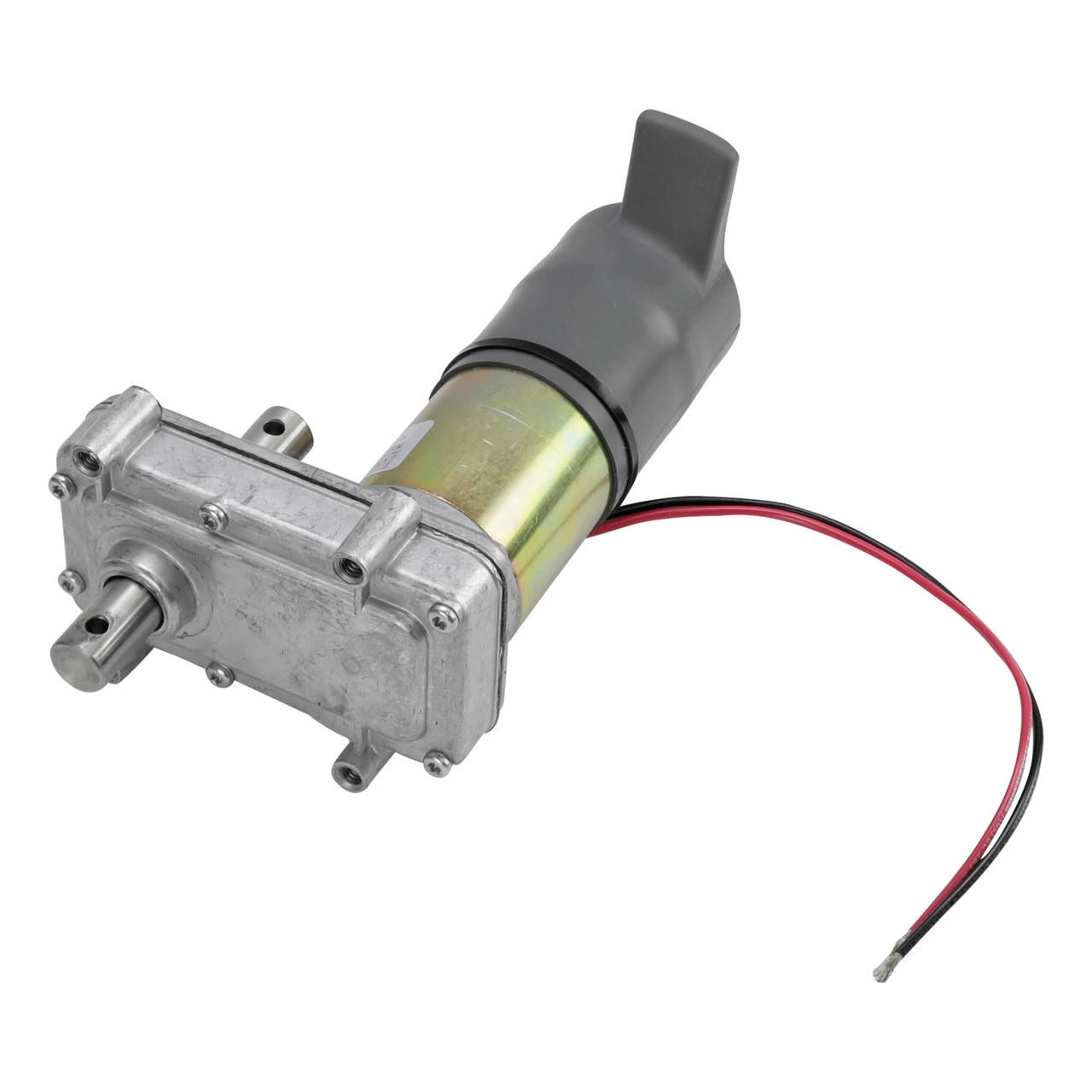

New, permanent magnet, parallel shaft gear-motor. Cast aluminum gear housing and motor end cap with steel motor frame. 12 VDC electro-mechanical brake on rear of motor with manual release lever.

SPECIFICATIONS

22 RPM
Voltage 12 DC
Run Torque 250 in-lbs
131:1 Gear Ratio
12 Amp
Rotation Reversible
Duty Intermittent
Enclosure TENV
Mount Four bolt face mount on 3.38″ x 3.38″centers
Dual Shafts 3/4″ diam. x 1-1/4″ with 1/4″ crosshole (no keyway)

CROSS REFERENCES: K01265C500, K01265N500, K01265C500EB, K01265N500EB, 520430, K01265A500, 383755, 522916

ALSO REPLACES: K01250A500 motor will have a manual brake release this does not affect the functionality or performance. K01348D500 Output shaft is 0.5″ shorter than the D500 however, all specs do match.

Electric Motors may be returned if authorized by Leisure CoachWorks and must be unused/not installed. Accepted returns are subject to a 20% restocking fee
